As we know about RS-232 communication protocol, I'm going to try RS-485 communication between two nodes. RS-485 can support multiple slaves and mostly used in industrial applications with high separation distance between nodes. I recently got 10pcs of MAX485 IC from ebay for $1 which is a RS-485 transceiver. I also got USB to RS-485 convertor based on CH430 + MAX485. I'm using another USB-UART convertor based on PL2303 for this test setup. So, I have two USB-UART chips connected using two MAX485 ICs in between,which provides the RS-485 communication.

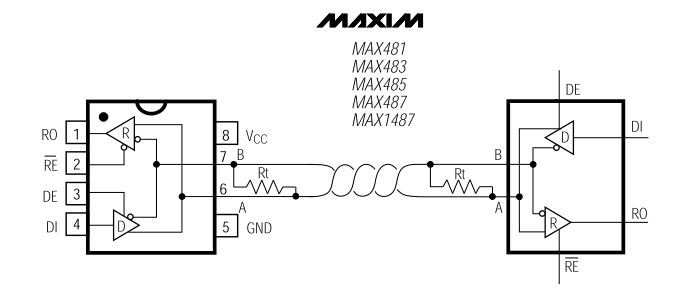

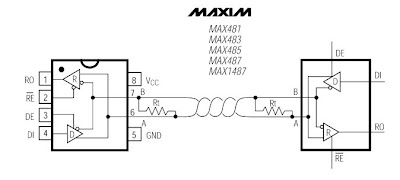

My test setup according to MAX485 datasheet.
(Image extracted from datasheet)

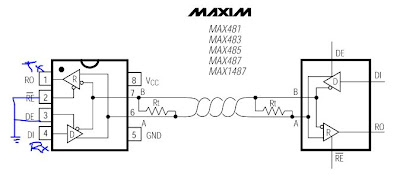

As MAX485 is half duplex, I have to use one as TX with following setup. I'm using my USB-RS485 adapter as RX and there is no need of manual setting as RX.
My TX setup on breadboard:

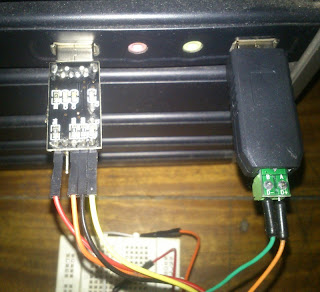

My RX setup, the one is right is USB-RS485 convertor:

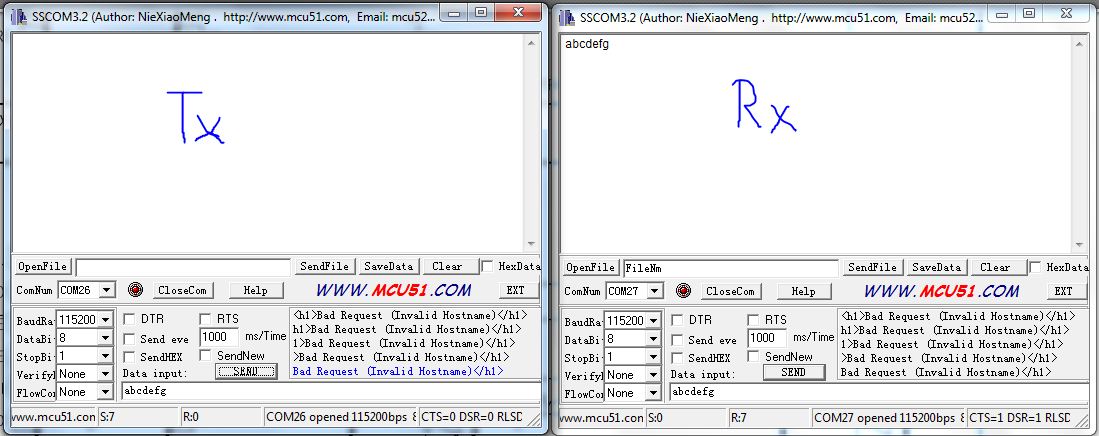

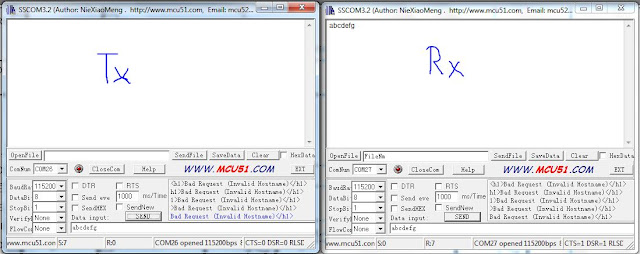

Test results :
