Development board for 18F4550

June 20, 2011 less than 1 minute read

I have designed a simple development board for 18F4550 to test my projects.I'm using a bootloader to program the uC using USB.It's very easy and fast for doing projects.I'll tell about it in next post.

You can easily build this circuit on a veroboard or a PCB.

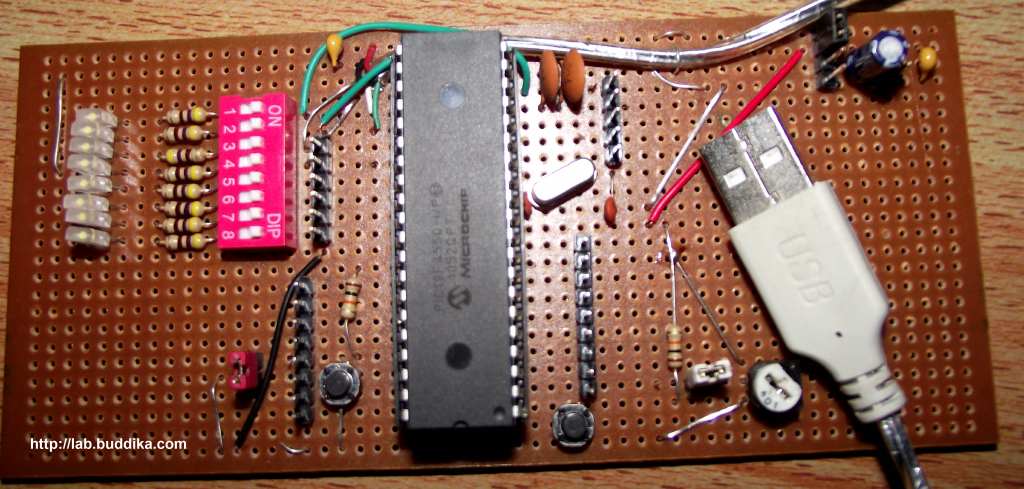

This is my completed circuit on a veroboard.
