ADSL Splitter quick fix

less than 1 minute read

I'm using my ADSL splitter for more than 5 years now.Recently I found out that Voice line is not working but Data line is working.When I was checking my ADSL splitter I found out that inductor on the voice side is blown out.Actually there are two filters in theboth side to pass only respective frequencies.

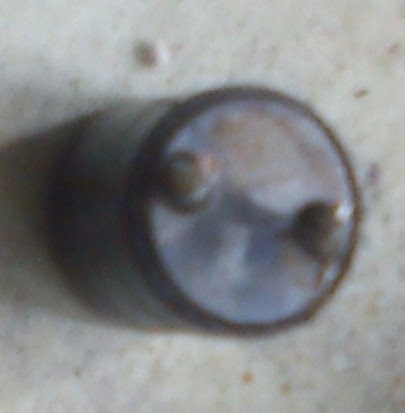

Blown out inductor :




When I searched the internet,I found out that these splitters usually have inductor around 330uH or so for the Low Pass Filter(LPF).So,I gave a try by replacing the blown out inductor with a 100uH inductor,which I had on my component store.TaDaaaa!!! It worked well,if not I could have to buy another splitter ;) ;)

This is Dilshan's post on splitters,Really nice,

Replaced with :
